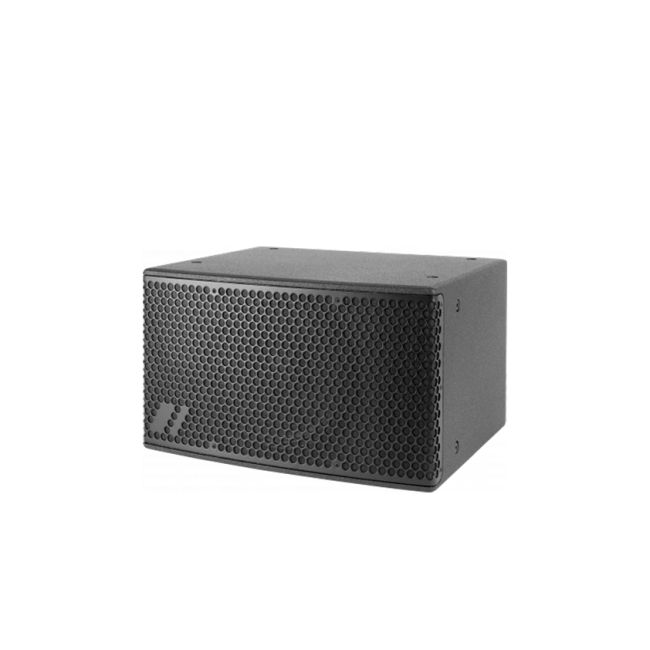

Caixa - Acustica D.A.S Quantum Q-10A Subwofer
Sistema de subwoofer compacto auto-amplificado Interfaz DAScontrolTM Gabinete de contraplacado de bétula 1 alto-falante DAS 10MG Faixa de frequência de 40 Hz – 200 Hz Amplificador Classe D 500 W peak
| Performance | |
| Frequency Range (-10 dB) | 40 Hz – 200 Hz |
| Maximum Peak SPL at 1 m | 121 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 250 W |
| Nominal Amplifier Power (peak) | 500 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| Current Draw 230 V / 115 V | 1.4 A/2.8 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Finish | ISO-flex Paint |
| Color | White |
| Dimensions ( H x W x D ) | 305 x 505 x 415 mm 12,0 x 19,9 x 16,3 in |
| Net Weight | 17,0 kg ( 37,4 lb ) |
| Components | |
| LF Driver | 10MG |
| Marcas | D.A.S Áudio |
|---|
